Applications:
Electrical insulation, mechanical strain relief of contacts and connections. Abrasion protection for water and hydraulic hoses as well as corrosion protection for metal pipes. Identification and color-coding purposes.

Properties:
Outstanding mechanical, chemical and electrical properties. Flame resistant or self-extinguishing (not applicable for clear Polyolefin tubing).

Temperature Range: – 75°C to + 260°C
Shrink Temperature: Starting from 85°C
Shrink Ratio: 1.2:1 to 4:1
Materials: Modified cross-linked Polyolefin, Fluor plastics as well as cross-linked Elastomers
Specification: MIL-I-52053

Applications:
Molded parts are primarily used in highly demanding operating conditions (e.g. Turbo-prop and jet engine compartments). Permanent, reliable immersion and dirt proof connections of cable jacket and connector housing with mechanical strain relief. Environmentally sealed protection of wire harness branches. End seal for wires or cables joined together with parallel splices. End seal and protection for metal tube ends (e.g. antenna caps).

Properties:
Outstanding mechanical, chemical and electrical resistance. Flame resistant and self-extinguishing. Outstanding mechanical, chemical and electrical resistance. Flame resistant and self-extinguishing.

Temperature Range: – 75°C up to + 200°C
Shrink Temperature: Starting from 120°C
Shrink Ratio: Up to 6:1
Materials: Modified, cross-linked Polyolefin as well as Elastomers – also available with adhesive coating
Specification: MIL

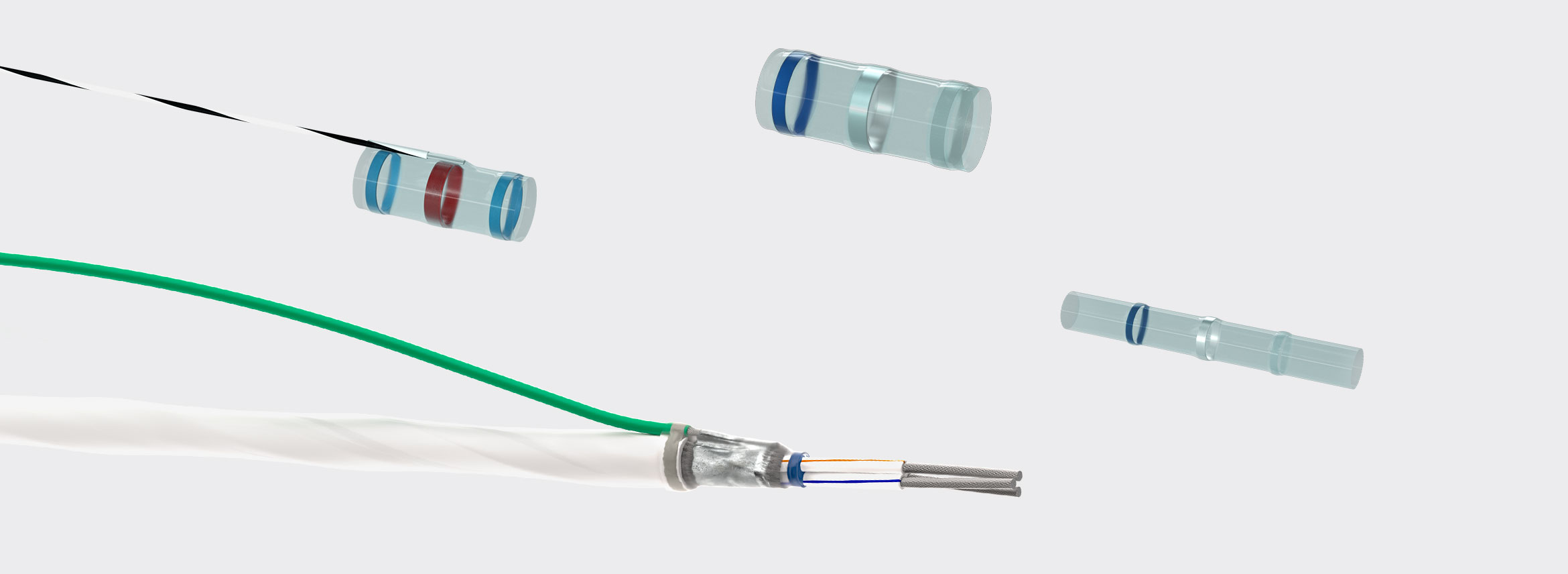

Applications:
High quality, reliable electrical connection of two or more wires as well as shield terminations. Easily reproducible application, soldering, insulation and sealing in one process of professional standard.

Properties:
Outstanding mechanical, chemical and electrical resistance. Flame resistant and self-extinguishing.

Temperature Range: – 55°C up to + 200°C
Shrink Temperature: Starting from 160°C
Materials: Cadmium free, eutectic solder rings with integrated flux in heat-shrink sleeves made from PVDF. Partially also supplied with meltable PE sealing rings.
Can also be manufactured with a pre-installed lead wire according to MIL specifications.

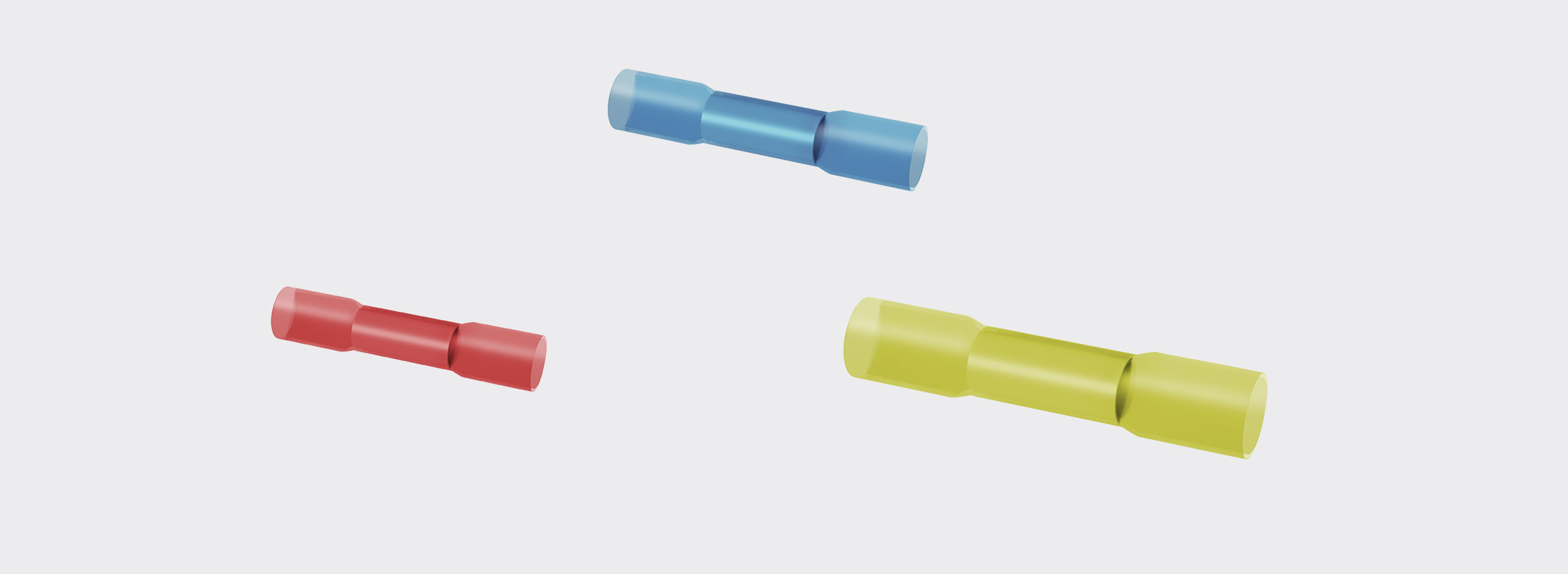

Applications:
High quality, reliable electrical connection of two or more stranded wires. Heat shrink technology provides protection of the splice against environmental and mechanical stress.

Properties:
Outstanding mechanical, chemical and electrical resistance. Flame resistant and self-extinguishing.

Temperature Range: – 55°C up to + 175°C
Materials: Tin, silver or nickel-plated electrolyte copper sleeve. Separate PVDF heat-shrink sleeve with integrated thermal-plastic sealing rings. Different sizes are color-coded.
Specification: MIL-S-81824
